Robot welding (compressor top cover ring seam welding)

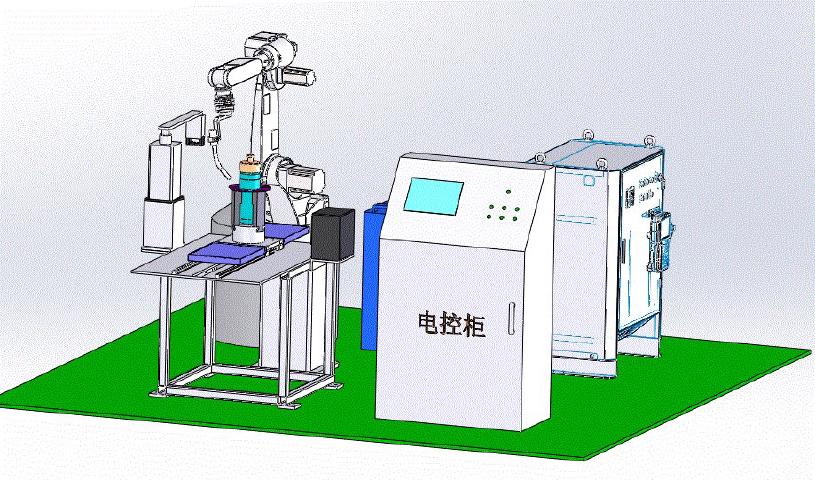

Equipment Introduction
This robot workstation is suitable for compressor upper cover ring seam part welding.
Workflow
1、Automatic loading and unloading of robots
2、Automatic workpiece clamping
3、Workpiece transfer to welding position
4、Buckle workpiece shield
5、Exhaust air shutdown
6、Robotic rotary girth welding
7、Robot back to original position after welding
8、Removal of workpiece shield
9、Ventilation open
10、Workpiece transfer to loading and unloading position
11、Workpiece release
12、Robotic loading and unloading
It takes 50 seconds to complete a set of movements

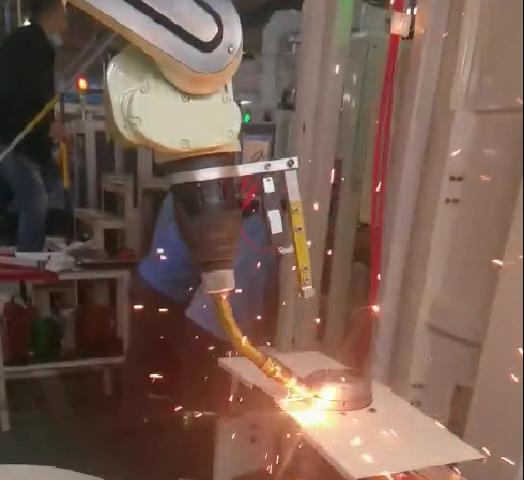

Equipment Site Pictures
