Tube bending and alignment machine

Tube Bending And Alignment Machine

Click to go to the video link

Brief Description Of The Equipment

Realize double flange and an elbow grouping, double flange and a straight pipe an elbow grouping, double flange and two straight pipe an elbow grouping, double flange and a reducer an elbow grouping, double flange and a reducer a straight pipe an elbow grouping.

Working Steps

1、The spindle is equipped with a welded chuck on which Franca is positioned by a spanning device, and the spindle is pneumatically locked.

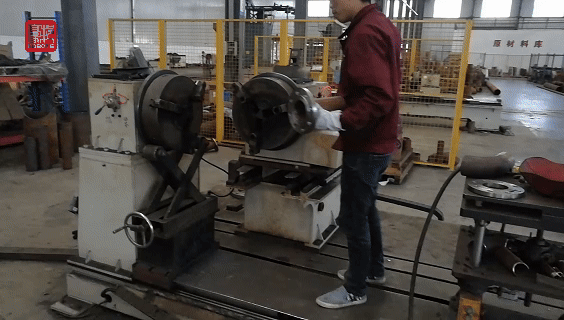

2、The mobile head chuck is loaded with another flange and the elbow is placed on the lifting trolley and adjusted to the corresponding height. Manually slide the moving trolley to the specified size and then implement spot welding.

Plus Workpiece Specifications

Maximum length of workpiece: 1.5m Pipe diameter: DN80-DN400

Equipment Photos

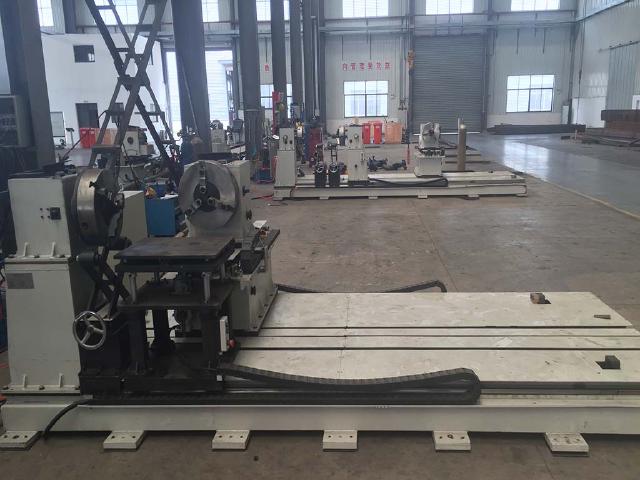

Bending group to special machine workshop photos

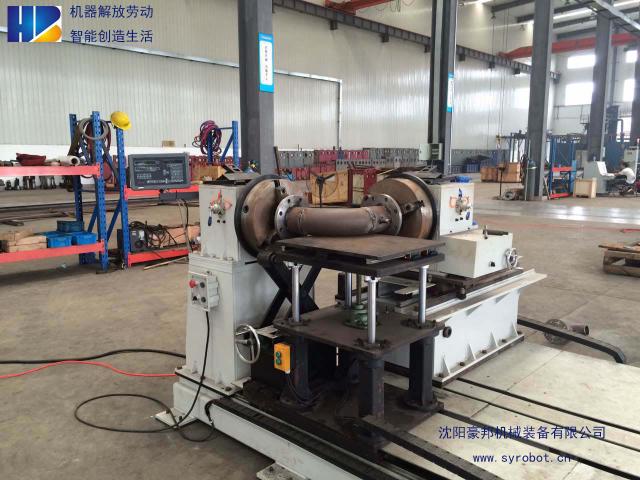

Bending group to special machine photos
